產品詳情
設計特點
1.脫蠟精密鑄造閥體
2.鑄造符合NACE/MR-01-75，適用於酸性氣體應用。
3.鑄件通過TUV AD 2000-merkblatt W0認證
4.符合en10204 3.1格式的檢驗證書
5.其他合金可供選擇
6.安裝維護簡單
7.清洗過濾網方便
8.網格數為40,60,80,100,120，可定製
适用标准
1. 設計:ASME B16.34
2. 壁厚：ASME B16.34
3. 法蘭端：ASME B16.5
4. 檢驗和測試：API 598
零部件及材料單位:毫米
|
NO. |
PART NAME |
MATERIAL |
||
|
1 |
BODY |
A351-CF8M |
A351-CF8 |
A216-WCB |
|
2 |
CAP |
A351-CF8M |
A351-CF8 |
A216-WCB |
|
3 |
FILTERS |
A240-316 |
A240-304 |
|
|
4 |
STOPPER |
A351-CF8M |
A351-CF8 |
|
|
5 |
GASKET |
PTFE/316 SPIRALWOUND+GRAPHITE |
||
|
6 |
BOLT |
A2-70 |
||

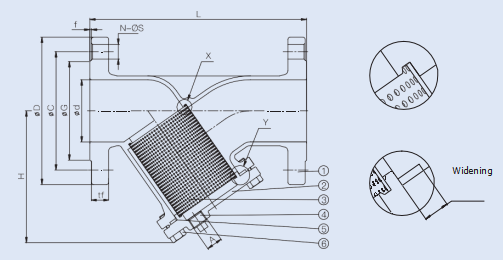

尺寸參數(ASME CLASS 150)單位:毫米
|
NPS |
DN |
d |
G |
C |
D |
tf |
f |
N-ΦS |
L |
H |
A |
|
1/2" |
15 |
15 |
35.1 |
60.5 |
89 |
9.7 |
1.5 |
4-Φ16 |
120 |
71 |
1/8"PT |
|
3/4" |
20 |
20 |
42.9 |
69.8 |
99 |
11.2 |
1.5 |
4-Φ16 |
140 |
79 |
1/8"PT |
|
1" |
25 |
25 |
50.8 |
79.2 |
108 |
12.7 |
1.5 |
4-Φ16 |
150 |
86 |
1/4"PT |
|
11/4" |
32 |
32 |
63.5 |
88.9 |
117 |
14.2 |
1.5 |
4-Φ16 |
180 |
96 |
1/4"PT |
|
11/2" |
40 |
40 |
73.0 |
98.6 |
127 |
15.9 |
1.5 |
4-Φ16 |
190 |
115 |
3/8"PT |
|
2" |
50 |
50 |
91.9 |
120.6 |
152 |
17.5 |
1.5 |
4-Φ19.1 |
210 |
134 |
3/8"PT |
|
21/2" |
65 |
65 |
104.6 |
139.7 |
178 |
20.6 |
1.5 |
4-Φ19.1 |
250 |
156 |
1/2"PT |
|
3" |
80 |
80 |
127.0 |
152.4 |
190 |
22.4 |
1.5 |
4-Φ19.1 |
280 |
175 |
1/2"PT |
|
4" |
100 |
100 |
157.2 |
190.5 |
229 |
22.4 |
1.5 |
8-Φ19.1 |
340 |
200 |
1/2"PT |
|
5" |
125 |
125 |
185.7 |
215.9 |
254 |
22.4 |
1.5 |
8-Φ22.2 |
380 |
253 |
3/4"PT |
|
6" |
150 |
150 |
215.9 |
241.3 |
279 |
23.9 |
1.5 |
8-Φ22.2 |
420 |
291 |
3/4"PT |
|
8" |
200 |
200 |
269.2 |
298.4 |
343 |
26.9 |
1.5 |
8-Φ22.2 |
540 |
382 |
3/4"PT |
尺寸參數 (ASME CLASS 300)單位:毫米
|
NPS |
DN |
d |
G |
C |
D |
tf |
f |
N-ΦS |
L |
H |
A |
|
1/2" |
15 |
15 |
35.1 |
66.5 |
95 |
12.7 |
1.5 |
4-Φ16 |
120 |
71 |
1/8"PT |
|
3/4" |
20 |
20 |
42.9 |
82.6 |
117 |
14.2 |
1.5 |
4-Φ19.1 |
140 |
79 |
1/8"PT |
|
1" |
25 |
25 |
50.8 |
88.9 |
124 |
15.7 |
1.5 |
4-Φ19.1 |
150 |
86 |
1/4"PT |
|
11/4" |
32 |
32 |
63.5 |
98.6 |
133 |
17.5 |
1.5 |
4-Φ19.1 |
180 |
96 |
1/4"PT |
|
11/2" |
40 |
40 |
73.0 |
114.3 |
155 |
19.0 |
1.5 |
4-Φ22.2 |
190 |
115 |
3/8"PT |
|
2" |
50 |
50 |
91.9 |
127.0 |
165 |
20.6 |
1.5 |
8-Φ19.1 |
210 |
134 |
3/8"PT |
|
21/2" |
65 |
65 |
104.6 |
149.4 |
190 |
23.9 |
1.5 |
8-Φ22.2 |
250 |
156 |
1/2"PT |
|
3" |
80 |
80 |
127.0 |
168.1 |
210 |
26.9 |
1.5 |
8-Φ22.2 |
280 |
175 |
1/2"PT |
|
4" |
100 |
100 |
157.2 |
200.2 |
254 |
30.2 |
1.5 |
8-Φ22.2 |
340 |
200 |
1/2"PT |
|
5" |
125 |
125 |
185.7 |
235.0 |
279 |
33.3 |
1.5 |
8-Φ22.2 |
380 |
253 |
3/4"PT |
|
6" |
150 |
150 |
215.9 |
269.7 |
318 |
35.1 |
1.5 |
12-Φ22.2 |
420 |
291 |
3/4"PT |
|
8" |
200 |
200 |
269.2 |
330.2 |
381 |
39.6 |
1.5 |
12-Φ25.4 |
540 |
382 |
3/4"PT |
