產品詳情
設計特點
1. 脫蠟精密鑄造閥體和閥蓋
2. 具有耐火結構設計和認證
3. 內置ISO 5211直接安裝墊，易於自動化
4. 防吹出閥杆
5. 球槽壓力平衡孔
6. 球桿體防靜電裝置
選擇:(1).Actuator,(2)。限位開關,(3)。定位器
適用標準
1. 設計標準：ASME B16.34,JIS B2001
2. 消防安全：API 607，ISO 10497
3. 結構長度：JIS B2002
4. 法蘭端：JIS B2220
5. 壁厚：ASME B16.34
6. 檢驗與試驗：JIS B2003 API 598

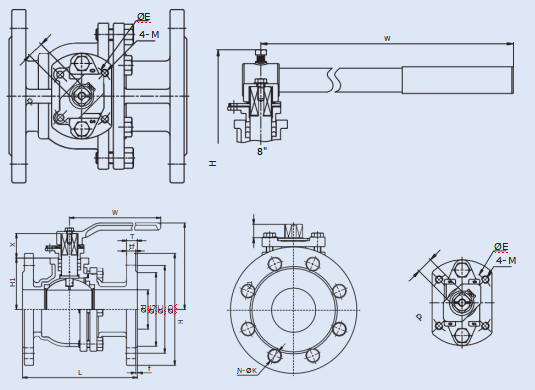

尺寸參數(ASME CLASS 150)單位:毫米
|
NPS |
d |
L |
H |
H1 |
W |
G |
C |
D |
tf |
f |
N-ΦK |
P |
X |
X1 |
E |
M |
ISO5211 |
|
|
|
|
|
|
|
|
|
|
|
Table 8 |
Table 9 |
|
|
|
|
|
|
|
|
|
1/2" |
15 |
108 |
70 |
31 |
150 |
35.1 |
60.5 |
89 |
9.7 |
7.9 |
1.5 |
4-Φ16.0 |
9 |
21 |
8 |
42 |
M6 |
F04 |
|
3/4" |
20 |
117 |
78 |
37 |
150 |
42.9 |
69.8 |
99 |
11.2 |
8.6 |
1.5 |
4-Φ16.0 |
9 |
24 |
9 |
42 |
M6 |
F04 |
|
1" |
25 |
127 |
88 |
40 |
200 |
50.8 |
79.2 |
108 |
12.7 |
9.7 |
1.5 |
4-Φ16.0 |
11 |
26 |
11 |
50 |
M6 |
F05 |
|
11/4" |
32 |
140 |
95 |
45 |
200 |
63.5 |
88.9 |
117 |
14.2 |
11.2 |
1.5 |
4-Φ16.0 |
11 |
26 |
11 |
50 |
M6 |
F05 |
|
11/2" |
40 |
165 |
117 |
59 |
220 |
73.0 |
98.6 |
127 |
15.9 |
12.7 |
1.5 |
4-Φ16.0 |
14 |
34 |
16 |
70 |
M8 |
F07 |
|
2" |
50 |
178 |
121 |
65 |
220 |
91.9 |
120.6 |
152 |
17.5 |
14.2 |
1.5 |
4-Φ19.1 |
14 |
35 |
17 |
70 |
M8 |
F07 |
|
21/2" |
65 |
190 |
143 |
85 |
315 |
104.6 |
139.7 |
178 |
20.6 |
15.7 |
1.5 |
4-Φ19.1 |
17 |
40 |
20 |
70 |
M8 |
F07 |
|
3" |
80 |
203 |
156 |
100 |
315 |
127.0 |
152.4 |
190 |
22.4 |
17.5 |
1.5 |
4-Φ19.1 |
17 |
41 |
20 |
70 |
M8 |
F07 |
|
4" |
100 |
229 |
179 |
123 |
400 |
157.2 |
190.5 |
229 |
22.4 |
22.4 |
1.5 |
8-Φ19.1 |
22 |
41 |
20 |
70 |
M8 |
F07 |
|
5" |
125 |
356 |
260 |
141 |
600 |
185.7 |
215.9 |
254 |
22.4 |
22.5 |
1.5 |
8-Φ22.2 |
25.7 |
64 |
38 |
102 |
M10 |
F10 |
|
6" |
150 |
394 |
279 |
159 |
600 |
215.9 |
241.3 |
279 |
23.9 |
23.9 |
1.5 |
8-Φ22.2 |
25.7 |
64 |
38 |
125 |
M12 |
F12 |
|
8" |
200 |
457 |
290 |
210 |
800 |
269.7 |
298.4 |
343 |
26.9 |
26.9 |
1.5 |
8-Φ22.2 |
32 |
75 |
42 |
125 |
M12 |
F12 |
尺寸參數(ASME CLASS 300)單位:毫米
|
NPS |
d |
L |
H |
H1 |
W |
G |
C |
D |
tf |
f |
N-ΦK |
P |
X |
X1 |
E |
M |
ISO5211 |
|
1/2" |
15 |
140 |
70 |
31 |
150 |
35.1 |
66.5 |
95 |
12.7 |
1.5 |
4-Φ16.0 |
9 |
21 |
8 |
42 |
M6 |
F04 |
|
3/4" |
20 |
152 |
78 |
37 |
150 |
42.9 |
82.6 |
117 |
14.2 |
1.5 |
4-Φ19.1 |
9 |
24 |
9 |
42 |
M6 |
F04 |
|
1" |
25 |
165 |
88 |
40 |
200 |
50.8 |
88.9 |
124 |
15.7 |
1.5 |
4-Φ19.1 |
11 |
26 |
11 |
50 |
M6 |
F05 |
|
11/4" |
32 |
178 |
95 |
45 |
200 |
63.5 |
98.6 |
133 |
17.5 |
1.5 |
4-Φ19.1 |
11 |
26 |
11 |
50 |
M6 |
F05 |
|
11/2" |
40 |
190 |
117 |
59 |
220 |
73.0 |
114.3 |
155 |
19.0 |
1.5 |
4-Φ22.2 |
14 |
34 |
16 |
70 |
M8 |
F07 |
|
2" |
50 |
216 |
121 |
65 |
220 |
91.9 |
127.0 |
165 |
20.6 |
1.5 |
8-Φ19.1 |
14 |
35 |
17 |
70 |
M8 |
F07 |
|
21/2" |
65 |
241 |
143 |
85 |
315 |
104.6 |
149.4 |
190 |
23.9 |
1.5 |
8-Φ22.2 |
17 |
40 |
20 |
70 |
M8 |
F07 |
|
3" |
80 |
282 |
156 |
100 |
315 |
127.0 |
168.1 |
210 |
26.9 |
1.5 |
8-Φ22.2 |
17 |
41 |
20 |
70 |
M8 |
F07 |
|
4" |
100 |
305 |
179 |
123 |
400 |
157.2 |
200.2 |
254 |
30.2 |
1.5 |
8-Φ22.2 |
22 |
41 |
20 |
70 |
M8 |
F07 |
|
5" |
125 |
381 |
260 |
141 |
600 |
185.7 |
235.0 |
279 |
33.3 |
1.5 |
8-Φ22.2 |
25.7 |
64 |
38 |
102 |
M10 |
F10 |
|
6" |
150 |
403 |
279 |
159 |
600 |
215.9 |
269.7 |
318 |
35.1 |
1.5 |
12-Φ22.2 |
25.7 |
64 |
38 |
125 |
M12 |
F12 |
|
8" |
200 |
502 |
290 |
210 |
800 |
269.7 |
330.2 |
381 |
39.6 |
1.5 |
12-Φ25.4 |
32 |
75 |
42 |
125 |
M12 |
F12 |
