產品詳情
設計特點
1.其他合金可供選擇
2.鑄造符合NACE/MR-01-75，適用於酸性氣體應用
3.鑄件通過TUV AD 2000-merkblatt W0認證
4.符合en10204 3.1格式的檢驗證書
5.等級：EP / BA級，平均粗糙度Ra≦0.24~0.6um，即可
根據項目需求定製
6.質量保證體系：ISO 9001，PED 2014/68/EU CE 0036
7.壓力等級：ASME B16.34: CLASS 150/300 JIS B2001: 10K/20K, EN 12516-1: PN16/PN40
適用的標準
1.設計標準：APl 608，ASME B 16.34,JIS b2001,EN 125 16-1
2.消防安全：app607，ISO 10497
3.結構長度：ASME B 16.10,JIS B2002, EN 558-27-1
4.法蘭端：ASME B16.5, JIS B2220
5.壁厚：ASME B 16.34,EN 125 16-1
6.檢驗和試驗：APl 598，APl 6D, JIS B2003,EN 12266-1

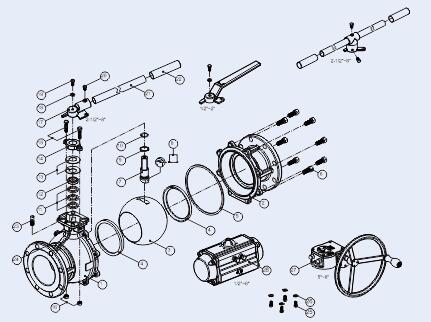

零部件及材料
|
NO. |
PART NAME |
MATERIALS |
||
|
ASTM/JIS G5121/EN 10213 |
ASTM/JIS G5121/EN 10213 |
ASTM/JIS G5151/EN 10213 |
||
|
1 |
BODY |
A351-CF8M/SCS14A/1.4408 |
A351-CF8/SCS13A/1.4308 |
A216-WCB/SCPH2/1.0619 |
|
2 |
CAP |
A351-CF8M/SCS14A/1.4408 |
A351-CF8/SCS13A/1.4308 |
A216-WCB/SCPH2/1.0619 |
|
3 |
BALL |
A182-F316/A351-CF8M/ SCS14A/1.4408 |
A182-F304/A351-CF8/SCS13A/1.4308 |
|
|
4 |
SEAT |
PEEK/TFM1600/PTFE/RTFE |
||
|
5 |
GASKET |
TFM1600/PTFE/316 SPIRALWOUND+GRAPHITE |
||
|
6 |
BOLT |
A2-70,F593C |
||
|
7 |
STEM |
A276-316 |
A276-304 |
|
|
8 |
ANTI STATIC |
A276-316 |
A276-304 |
|
|
9 |
THRUST WASHER |
PTFE/15CF+FF(PTFE+15%CARBON FIBER) |
||
|
10 |
O RING |
FKM |
||
|
11 |
PACKING |
PTFE/GRAPHITE |
||
|
12 |
GLAND |
A276-304 |
||
|
13 |
DISC WASHER |
A240-301 |
||
|
14 |
GLAND PLATE |
A351-CF8 |
||
|
15 |
GLAND BOLT |
A2-70 |
||
|
16 |
GLAND NUT |
A2-70 |
||
|
17 |
HANDLE |
A351-CF8 |
||
|
18 |
SPRING WASHER |
A240-304 |
||
|
19 |
HANDLE BOLT |
A2-70 |
||
|
20 |
LEVER BOLT |
A2-70 |
||
|
21 |
LEVER |
A53+PLATED ZN |
||
|
22 |
PLASTIC COVER |
VINYL PLASTIC |
||
|
23 |
STOP PIN |
A276-304 |
||
|
24 |
NAMEPLATE |
A666-304 |
||
|
25 |
BOLT |
A2-70 |
||
|
26 |
BOLT WASHER |
A240-304 |
||
|
27 |
GEAR BOX |
FINISHED PRODUCT |
||
|
28 |
ACTUATORS |
PNEUMATIC KP/ELECTRIC KQ |
||

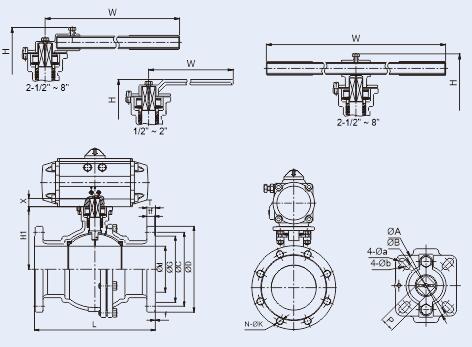

尺寸参数(ASME CLASS 150)单位:毫米
|
NPS |
d |
L |
H |
H1 |
W |
G |
C |
D |
tf |
f |
N-ΦK |
P |
X |
A |
a |
B |
b |
ISO 5211 |
|
1/2" |
15 |
108 |
89 |
49 |
150 |
35.1 |
60.5 |
89 |
7.9 |
1.5 |
4-Φ16.0 |
9 |
9 |
42 |
6 |
36 |
6 |
F03,F04 |
|
3/4" |
20 |
117 |
91 |
52 |
150 |
42.9 |
69.8 |
99 |
8.6 |
1.5 |
4-Φ16.0 |
9 |
9 |
42 |
6 |
36 |
6 |
F03,F04 |
|
1" |
25 |
127 |
105 |
64 |
200 |
50.8 |
79.2 |
108 |
9.7 |
1.5 |
4-Φ16.0 |
11 |
11 |
50 |
7 |
42 |
6 |
F04,F05 |
|
11/4" |
32 |
140 |
113 |
71.5 |
200 |
63.5 |
88.9 |
117 |
11.2 |
1.5 |
4-Φ16.0 |
11 |
11 |
50 |
7 |
42 |
6 |
F04,F05 |
|
11/2" |
40 |
165 |
120 |
79 |
220 |
73.0 |
98.6 |
127 |
12.7 |
1.5 |
4-Φ16.0 |
14 |
14 |
70 |
9 |
50 |
7 |
F05,F07 |
|
2" |
50 |
178 |
128 |
87 |
220 |
91.9 |
120.6 |
152 |
14.2 |
1.5 |
4-Φ19.1 |
14 |
14 |
70 |
9 |
50 |
7 |
F05,F07 |
|
21/2" |
65 |
190 |
155 |
110 |
315 |
104.6 |
139.7 |
178 |
15.7 |
1.5 |
4-Φ19.1 |
17 |
17 |
102 |
11 |
70 |
9 |
F07,F10 |
|
3" |
80 |
203 |
165 |
121 |
315 |
127.0 |
152.4 |
190 |
17.5 |
1.5 |
4-Φ19.1 |
17 |
17 |
102 |
11 |
70 |
9 |
F07,F10 |
|
4" |
100 |
229 |
187 |
140 |
400 |
157.2 |
190.5 |
229 |
22.4 |
1.5 |
8-Φ19.1 |
22 |
22 |
102 |
11 |
70 |
9 |
F07,F10 |
|
5" |
125 |
356 |
257 |
186 |
600 |
185.7 |
215.9 |
254 |
22.5 |
1.5 |
8-Φ22.2 |
27 |
27 |
125 |
13.5 |
102 |
11.5 |
F10,F12 |
|
6" |
150 |
394 |
275 |
204 |
600 |
215.9 |
241.3 |
279 |
23.9 |
1.5 |
8-Φ22.2 |
27 |
27 |
125 |
13.5 |
102 |
11.5 |
F10,F12 |
|
8" |
200 |
457 |
336 |
242 |
800 |
269.7 |
298.4 |
343 |
26.9 |
1.5 |
8-Φ22.2 |
36 |
36 |
140 |
18 |
125 |
13.5 |
F12,F14 |
