產品詳情
零部件及材料單位:毫米
|
PART NAME |
MATERIAL |
|
|
BODY |
CF8M |
CF8 |
|
BONNET |
CF8M |
CF8 |
|
BALL |
SS316 |
SS304 |
|
STEM |
SS316 |
SS304 |
|
SEAT |
RTFE |
RTFE |
|
STEM SEAL |
PTFE |
PTFE |
|
MIDDLE HEAD PAD |
PTFE |
PTFE |
|
PACKING SLEEVE |
SS202 |
SS202 |
|
ELASTIC WASHER |
SS302 |
SS302 |
|
NUT |
SS302 |
SS302 |
|
BOLT |
SS302 |
SS302 |
|
ELASTIC WASHER |
SS302 |
SS302 |

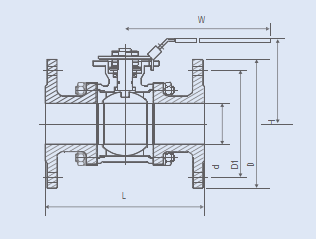

尺寸參數(EN PN40)單位:毫米
|
DN |
L |
d |
H |
D |
D1 |
W |
|
15 |
130 |
15 |
72 |
95 |
65 |
145 |
|
20 |
150 |
20 |
75 |
105 |
75 |
145 |
|
25 |
158 |
25 |
85 |
115 |
85 |
166 |
|
32 |
175 |
32 |
100 |
140 |
100 |
166 |
|
40 |
202 |
39 |
110 |
150 |
110 |
206 |
|
50 |
227 |
50 |
125 |
165 |
125 |
206 |
