產品詳情
零部件及材料
|
PART NAME |
MATERIAL |
|
|
BODY |
CF8M |
CF8 |
|
BONNET |
CF8M |
CF8 |
|
BALL |
SS316 |
SS304 |
|
STEM |
SS316 |
SS304 |
|
SEAT |
RTFE |
RTFE |
|
STEM SEAL |
PTFE |
PTFE |
|
MIDDLE HEAD PAD |
PTFE |
PTFE |
|
PACKING SLEEVE |
SS202 |
SS202 |
|
HANDLE |
SS202 |
SS202 |
|
RUBBER SLEEVE |
PLASTIC |
PLASTIC |
|
ELASTIC WASHER |
SS202 |
SS202 |
|
NUT |
SS202 |
SS202 |
|
BOLT |
SS202 |
SS202 |
|
ELASTIC WASHER |
A193GR.B8 |
A193GR.B8 |

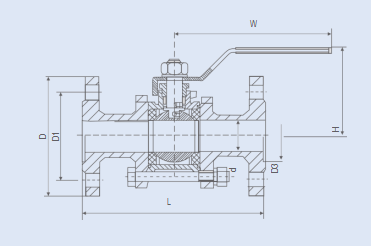

尺寸參數(EN PN40)單位:毫米
|
DN |
L |
d |
H |
D |
D1 |
D3 |
W |
|
15 |
130 |
15 |
57 |
95 |
65 |
40 |
105 |
|
20 |
150 |
20 |
63 |
105 |
75 |
51 |
118 |
|
25 |
158 |
25 |
77 |
115 |
85 |
58 |
128 |
|
32 |
175 |
32 |
80 |
140 |
100 |
66 |
137 |
|
40 |
202 |
39 |
92 |
150 |
110 |
76 |
170 |
|
50 |
227 |
50 |
102 |
165 |
125 |
88 |
170 |
|
65 |
284 |
65 |
115 |
185 |
145 |
110 |
215 |
|
80 |
316 |
78 |
136 |
200 |
160 |
121 |
235 |
|
100 |
348 |
100 |
178 |
220 |
180 |
150 |
318 |
