產品詳情
零部件及材料
|
PART NAME |
MATERIAL |
|
|
BODY |
CF8M |
CF8 |
|
BONNET |
CF8M |
CF8 |
|
BALL |
SS304 |
SS304 |
|
STEM |
SS304 |
SS304 |
|
SEAT |
RTFE |
RTFE |
|
STEM SEAL |
PTFE |
PTFE |
|
MIDDLE HEAD PAD |
PTFE |
PTFE |
|
PACKING SLEEVE |
SS202 |
SS202 |
|
HANDLE |
SS202 |
SS202 |
|
RUBBER SLEEVE |
PLASTIC |
PLASTIC |
|
ELASTIC WASHER |
SS202 |
SS202 |
|
NUT |
SS202 |
SS202 |
|
BOLT |
SS202 |
SS202 |

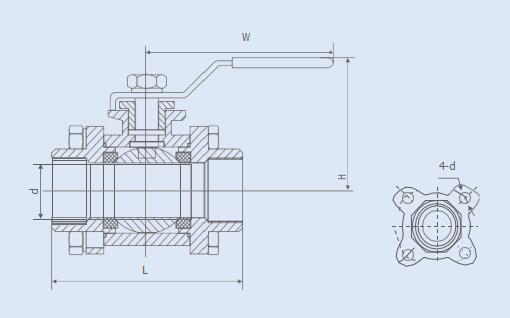

尺寸參數
|
NPS |
DN |
d |
L |
H |
W |
4-d |
|
1/4" |
6 |
11.6 |
65 |
48 |
120 |
7 |
|
3/8" |
10 |
12.7 |
65 |
48 |
120 |
7 |
|
1/2" |
15 |
15 |
72 |
54 |
120 |
8 |
|
3/4" |
20 |
20 |
83 |
57 |
130 |
8.5 |
|
1" |
25 |
25 |
91 |
72 |
154 |
8.5 |
|
11/4" |
32 |
32 |
103 |
79 |
154 |
10 |
|
11/2" |
40 |
38 |
110 |
81 |
185 |
10 |
|
2" |
50 |
50 |
131 |
97 |
185 |
11 |
|
21/2" |
65 |
65 |
164.5 |
130 |
250 |
16 |
|
3" |
80 |
80 |
182.5 |
148 |
250 |
18 |
