產品詳情
零部件及材料
|
PART NAME |
MATERIAL |
|
|
BODY |
CF8M |
CF8 |
|
BONNET |
CF8M |
CF8 |
|
BALL |
SS316 |
SS304 |
|
STEM |
SS316 |
SS304 |
|
SEAT |
RTFE |
|
|
STEM SEAL |
PTFE |
|
|
MIDDLE HEAD PAD |
PTFE |
|
|
PACKING SLEEVE |
SS202 |
|
|
ELASTIC WASHER |
SS202 |
|
|
NUT |
SS202 |
|
|
BOLT |
SS304 |
|
|
ELASTIC WASHER |
A193GR.B8 |
|
|
NUT |
A194.GR.8 |
|

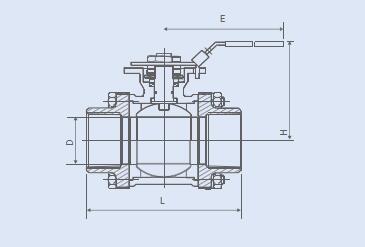

尺寸參數單位:毫米
|
Size |
d mm |
L mm |
H mm |
W mm |
HEX.A mm |
CVFACTOR |
TORQUE N.m |
WT （kg） |
|
1/4" |
5 |
39 |
32 |
60 |
16 |
4.0 |
1.0 |
0.07 |
|
3/8" |
7 |
44 |
36 |
75 |
20 |
4.0 |
1.5 |
0.11 |
|
1/2" |
9.2 |
59 |
42 |
95 |
24 |
4.5 |
2.5 |
0.20 |
|
3/4" |
12.5 |
62 |
45 |
95 |
30.5 |
9.0 |
3.5 |
0.30 |
|
1" |
15 |
72 |
51 |
115 |
37.5 |
16.0 |
5.0 |
0.42 |
|
11/4" |
20 |
78 |
54 |
115 |
46.5 |
24.0 |
6.0 |
0.60 |
|
11/2" |
25 |
85 |
61 |
150 |
53 |
37.0 |
9.0 |
0.83 |
|
2" |
32 |
100 |
66 |
150 |
65 |
68.0 |
12.0 |
1.24 |
