產品詳情
設計特點
1. 脫蠟精密鑄造閥體
2. 鑄造符合NACE/MR-01-75的酸性氣體服務。
3. 鑄件通過TUV AD 2000- Merkblatt W0
4. 符合EN10204 3.1表格的檢驗證書
5. 其他合金可供選擇
6. 全流道
7. 防吹出閥杆
8. 球槽壓力平衡孔
9. 各種螺紋標準
10. 鎖緊裝置可根據要求提供
適用的標準
1. 設計標準：MSS SP-110
2. 壁厚：EN 12516-3，MSS SP-110
3. 管道螺紋：ASME B1.20.1, JIS B0203, BS 21, DIN 2999/259, ISO 7/1, ISO 228-1
4. 承插焊接：ASME B16.11
5. 對接焊接：ASME B16A.25
6. 結構長度.：L2: DIN 3202 M3，L3: din 3202 s13
7. 檢驗與測試：MSS SP-110
零部件及材料
|
NO. |
PART NAME |
MATERIALS |
|
|
1 |
BODY |
A351-CF8M |
A216- WCB |
|
2 |
CAP |
A351-CF8M |
A216- WCB |
|
3 |
BALL |
A182-F316 |
|
|
4 |
SEAT |
PTFE |
|
|
5 |
GASKET |
PTFE |
|
|
6 |
STEM |
A276-316 |
|
|
7 |
THRUST WASHER |
PTFE |
|
|
8 |
PACKING |
PTFE |
|
|
9 |
GLAND NUT |
A2-70 |
|
|
10 |
HANDLE |
A240-304 |
|
|
11 |
SPRING WASHER |
A240-304 |
|
|
12 |
NUT |
A2-70 |
|
|
13 |
LOCKING PAD |
A240-304 |
|
|
14 |
PLASTIC COVER |
VINYL PLASTIC |
|
|
15 |
BOLT |
A2-70 |
|
|
16 |
SPRING WASHER |
A240-301 |
|
|
17 |
NUT |
A2-70 |
|

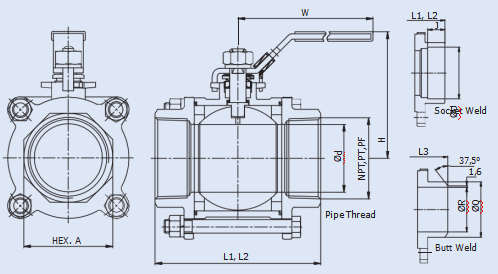

尺寸參數(EN PN40)單位:毫米
|
SIZE |
d mm |
L1 mm |
L2 mm |
L3 mm |
H mm |
W mm |
U mm |
J mm |
Q mm |
R mm |
A mm |
CVFACTOR |
TORQUE N.m |
|
1/4" |
10 |
55 |
55 |
70 |
38 |
85 |
14.2 |
9.5 |
18 |
10 |
17 |
6 |
5 |
|
3/8" |
12.5 |
60 |
60 |
70 |
40 |
85 |
17.8 |
9.5 |
18 |
12.5 |
21 |
7 |
5 |
|
1/2" |
15 |
75 |
75 |
75 |
53 |
102 |
21.8 |
9.5 |
23 |
13.84 |
25 |
10 |
6 |
|
3/4" |
20 |
80 |
80 |
90 |
56 |
102 |
27.3 |
12.5 |
28 |
18.88 |
31 |
25 |
10 |
|
1" |
25 |
90 |
90 |
100 |
69 |
120 |
34.0 |
12.5 |
35 |
26.64 |
39 |
35 |
12 |
|
11/4" |
32 |
100 |
110 |
110 |
75 |
120 |
42.8 |
12.5 |
44 |
35.08 |
46 |
46 |
16 |
|
11/2" |
38 |
115 |
120 |
125 |
86 |
162 |
49.0 |
12.5 |
50 |
40.94 |
54 |
80 |
20 |
|
2" |
50 |
130 |
140 |
150 |
92 |
162 |
61.4 |
16.0 |
62 |
52.48 |
65 |
110 |
32 |
|
21/2" |
64 |
175 |
185 |
190 |
120 |
220 |
74.0 |
16.0 |
75 |
62.5 |
84 |
310 |
54 |
|
3" |
78 |
190 |
205 |
220 |
130 |
220 |
90.0 |
16.0 |
91 |
78.0 |
95 |
360 |
80 |
|
4" |
98 |
220 |
240 |
270 |
145 |
220 |
115.5 |
19.0 |
117 |
102 |
124 |
820 |
110 |
