產品詳情
設計特點
1. 其他合金可供選擇
2. 鑄造符合NACE/MR-01-75的酸性氣體服務。
3. 鑄造通過TUV AD 2000-Merkblatt W0
4. 符合en10204 3.1表格的檢驗證書
5. 壓力等級：ASME B16.34: 150級；JIS B2001:5K / 10 k, bEN 12516 - 1: PN10 / PN16
6. 質量保證體系：ISO 9001，PED 2014/68/EU CE 0036

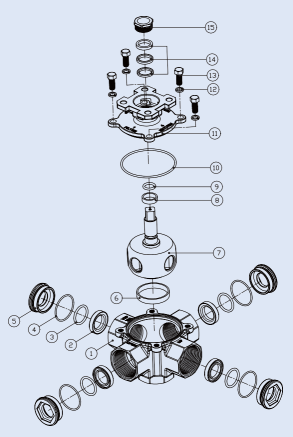

零部件及材料
|
NO. |
PART NAME |
MATERIALS |
||
|
|
|
ASTM/JIS G5121/EN 10213 |
ASTM/JIS G5121/EN 10213 |
ASTM/JIS G5121/EN 10213 |
|
1 |
BODY |
A351-CF3M/SCS16A/1.4409 |
A351-CF8M/SCS14A/1.4408 |
A351-CF8/SCS13A/1.4308 |
|
2 |
SEAT |
PEEK/TFM1600/PTFE/RTFE |
||
|
3 |
O RING |
FKM/VITON/VMQ |
||
|
4 |
O RING |
FKM/VITON/VMQ |
||
|
5 |
CAP |
A351-CF3M/SCS16A/1.4409 |
A351-CF8M/SCS14A/1.4408 |
A351-CF8/SCS13A/1.4308 |
|
6 |
BUSH |
PEEK/TFM1600/PTFE/RTFE |
||
|
7 |
FIXED BALL |
A351-CF3M/SCS16A/1.4409 |
A351-CF8M/SCS14A/1.4408 |
A351-CF8/SCS13A/1.4308 |
|
8 |
BUSH |
PEEK/TFM1600/PTFE/RTFE |
||
|
9 |
O RING |
FKM/VITON/VMQ |
||
|
10 |
O RING |
FKM/VITON/VMQ |
||
|
11 |
UPPRE COVER |
A351-CF3M/SCS16A/1.4409 |
A351-CF8M/SCS14A/1.4408 |
A351-CF8/SCS13A/1.4308 |
|
12 |
SPRING WASHER |
A276-304 |
||
|
13 |
BOLT |
A2-70 |
||
|
14 |
PACKING |
PTFE/GRAPHITE |
||
|
15 |
GLAND NUT |
A2-70 |
||
