產品詳情
零部件及材料
|
PART NAME |
MATERIAL |
|
|
BODY |
CF8M |
CF8 |
|
BONNET |
CF8M |
CF8 |
|
BALL |
SS316 |
SS304 |
|
STEM |
SS316 |
SS304 |
|
SEAT |
RTFE |
|
|
MIDDLE HEAD PAD |
PTFE |
|
|
PACKING SLEEVE |
SS202 |
|
|
LINE BAR |
PTFE |
|
|
DIRECTION INDICATOR |
POLYETHYLENE |
|

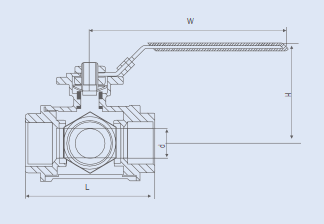

尺寸參數(EN PN40)單位:毫米
|
NPS |
DN |
L |
d |
H |
W |
|
1/4" |
6 |
64 |
4.2 |
32 |
85 |
|
3/8" |
10 |
64 |
6 |
32 |
95 |
|
1/2" |
15 |
68 |
10 |
34 |
108 |
|
3/4" |
20 |
78 |
15 |
60 |
115 |
|
1" |
25 |
86 |
18 |
60 |
135 |
|
11/4" |
32 |
111 |
25 |
76 |
150 |
|
11/2" |
40 |
126 |
32 |
85 |
175 |
|
2" |
50 |
143 |
40 |
95 |
190 |
