產品詳情
設計特點
1.脫蠟精密鑄造閥體和閥蓋
2.內置ISO 5211直接安裝墊，易於自動化
3.防吹出閥杆
4.球槽壓力平衡孔
5.球桿體防靜電裝置
6.鎖緊裝置可根據要求提供
7.提供多種螺紋標準
8.可選：(1)執行器，(2)限位開關，(3)定位器
適用的標準
1.設計標準：MSS SP-110
2.壁厚：EN 12516-3，MSS SP-110
3.管道螺紋：ASME B1.20.1, JIS B0203, BS 21, DIN 2999/259, ISO 7/1, ISO 228-1
4.承插焊接：ASME B16.11
5.對接焊接：ASME B16.25
6.結構長度：L2: DIN 3202 M3， L3: DIN 3202 S13
7.檢驗與測試：MSS SP-110

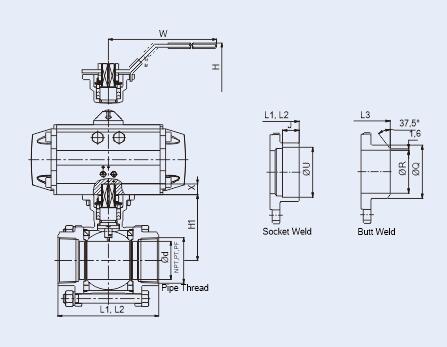

尺寸参数
|
NPS |
DN |
d |
L1 |
L2 |
L3 |
H |
H1 |
W |
U |
J |
Q |
R |
P |
X |
A |
a |
B |
b |
ISO 5211 |
|
1/4" |
8 |
10 |
55 |
55 |
70 |
89 |
49 |
113 |
14.2 |
9.5 |
18 |
10 |
9 |
9 |
42 |
6 |
36 |
6 |
F03,F04 |
|
3/8" |
10 |
12.5 |
60 |
60 |
70 |
89 |
49 |
113 |
17.8 |
9.5 |
18 |
12.5 |
9 |
9 |
42 |
6 |
36 |
6 |
F03,F04 |
|
1/2" |
15 |
15 |
75 |
75 |
75 |
89 |
49 |
113 |
21.8 |
9.5 |
23 |
13.84 |
9 |
9 |
42 |
6 |
36 |
6 |
F03,F04 |
|
3/4" |
20 |
20 |
80 |
80 |
90 |
91 |
52 |
113 |
27.3 |
12.5 |
28 |
18.88 |
9 |
9 |
42 |
6 |
36 |
6 |
F03,F04 |
|
1" |
25 |
25 |
90 |
90 |
100 |
105 |
64 |
188 |
34.0 |
12.5 |
35 |
26.64 |
11 |
11 |
50 |
7 |
42 |
6 |
F04,F05 |
|
11/4" |
32 |
32 |
100 |
110 |
110 |
113 |
71.5 |
188 |
42.8 |
12.5 |
44 |
35.08 |
11 |
11 |
50 |
7 |
42 |
6 |
F04,F05 |
|
11/2" |
40 |
38 |
115 |
120 |
125 |
120 |
79 |
200 |
49.0 |
12.5 |
50 |
40.94 |
14 |
14 |
70 |
9 |
50 |
7 |
F05,F07 |
|
2" |
50 |
50 |
130 |
140 |
150 |
128 |
87 |
200 |
61.4 |
16.0 |
62 |
52.48 |
14 |
14 |
70 |
9 |
50 |
7 |
F05,F07 |
|
21/2" |
65 |
64 |
175 |
185 |
190 |
155 |
110 |
273 |
74.0 |
16.0 |
75 |
62.5 |
17 |
17 |
102 |
11 |
70 |
9 |
F07,F10 |
|
3" |
80 |
78 |
190 |
205 |
220 |
165 |
121 |
273 |
90.0 |
16.0 |
91 |
78.0 |
17 |
17 |
102 |
11 |
70 |
9 |
F07,F10 |
|
4" |
100 |
98 |
220 |
240 |
270 |
187 |
140 |
292 |
115.5 |
19.0 |
117 |
102 |
22 |
22 |
102 |
11 |
70 |
9 |
F07,F10 |
