產品詳情
零部件及材料
|
PART NAME |
MATERIAL |
||
|
BODY |
CF8M |
CF8 |
WCB |
|
BONNET |
CF8M |
CF8 |
WCB |
|
BALL |
SS316 |
SS304 |
SS304 |
|
STEM |
SS316 |
SS304 |
SS304 |
|
SEAT |
PTFE |
||
|
LINE BAR |
PTFE |
||
|
STEM SEAL |
PTFE |
||
|
MIDDLE HEAD PAD |
PTFE |
||
|
PACKING SLEEVE |
SS202 |
||

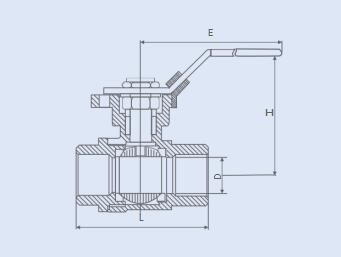

尺寸參數
|
NPS |
D |
L |
E |
H |
|
1/2" |
15 |
62 |
120 |
70 |
|
3/4" |
20 |
74 |
137 |
78 |
|
1" |
25 |
86 |
137 |
82 |
|
11/4" |
32 |
96 |
187 |
88 |
|
11/2" |
38 |
108 |
187 |
93 |
|
2" |
50 |
120 |
187 |
103 |
|
21/2" |
65 |
160 |
315 |
165 |
|
3" |
85 |
185 |
315 |
180 |
|
4" |
100 |
225 |
265 |
200 |
