產品詳情
適用的標準
1. 其他合金可供選擇
2. 鑄造符合NACE/MR-01-75，適用於酸性氣體應用
3. 鑄件通過TUV AD 2000-merkblatt W0認證
4. 符合EN10204 3.1表格的檢驗證書
5. 質量保證體系：ISO 9001，PED 2014/68/EU CE 0036
6. 壓力等級：ASME B16.34: CLASS 150/300; B2001: 10K/20K; EN 12516-1: PN16/PN40

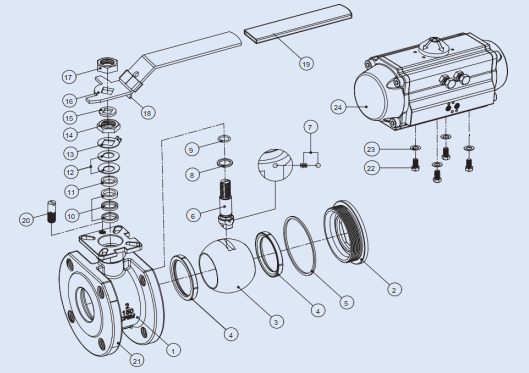

零部件及材料
|
NO. |
PART NAME |
MATERIALS |
||
|
|
|
ASTM/JIS G5121/EN 10213 |
ASTM/JIS G5121/EN 10213 |
ASTM/JIS G5151/EN 10213 |
|
1 |
BODY |
A351-CF8M/SCS14A/1.4408 |
A351-CF8/SCS13A/1.4308 |
A216-WCB/SCPH2/1.0619 |
|
2 |
CAP |
A351-CF8M/SCS14A/1.4408 |
A351-CF8/SCS13A/1.4308 |
A216-WCB/SCPH2/1.0619 |
|
3 |
BALL |
A182-F316 |
A182-F304 |
|
|
4 |
SEAT |
PEEK/TFM1600/PTFE/RTFE |
||
|
5 |
GASKET |
TFM1600/PTFE/316 SPIRALWOUND+GRAPHITE |
||
|
6 |
STEM |
A276-316 |
A276-304 |
|
|
7 |
ANTI STATIC |
A276-316 |
A276-304 |
|
|
8 |
THRUST WASHER |
PTFE/15CF+FF(PTFE+15%CARBON FIBER) |
||
|
9 |
O RING |
FKM |
||
|
10 |
PACKING |
PTFE/GRAPHITE |
||
|
11 |
GLAND |
A276-304 |
||
|
12 |
DISC WASHER |
A240-301 |
||
|
13 |
PREVENT LOOSENESS |
A240-304 |
||
|
14 |
STEM NUT |
A2-70 |
||
|
15 |
HANDLE SHIM |
A240-304 |
||
|
16 |
HANDLE |
A240-304 |
||
|
17 |
HANDLE NUT |
A2-70 |
||
|
18 |
LOCKING PAD |
A240-304 |
||
|
19 |
PLASTIC COVER |
VINYL PLASTIC |
||
|
20 |
STOP PIN |
A276-304 |
||
|
21 |
NAMEPLATE |
A666-304 |
||
|
22 |
BOLT |
A2-70 |
||
|
23 |
BOLT WASHER |
A240-304 |
||
|
24 |
ACTUATORS |
PNEUMATIC KP / ELECTRIC KQ |
||
