產品詳情

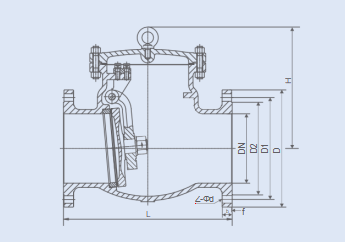

尺寸參數單位:毫米
|
DN |
NPS（in） |
d |
D |
D1 |
C |
R |
Z-d1 |
L |
|
15 |
1/2 |
13 |
90 |
60.3 |
8.0 |
34.9 |
4-Φ16 |
108 |
|
20 |
3/4 |
19 |
100 |
69.9 |
8.9 |
42.9 |
4-Φ16 |
117 |
|
25 |
1 |
25 |
110 |
79.4 |
9.6 |
50.8 |
4-Φ16 |
127 |
|
32 |
11/4 |
32 |
115 |
88.9 |
11.2 |
63.5 |
4-Φ16 |
140 |
|
40 |
11/2 |
38 |
125 |
98.4 |
12.7 |
73.0 |
4-Φ16 |
165 |
|
50 |
2 |
51 |
150 |
120.7 |
14.3 |
92.1 |
4-Φ19 |
203 |
|
65 |
21/2 |
64 |
180 |
139.7 |
15.9 |
104.8 |
4-Φ19 |
216 |
|
80 |
3 |
76 |
190 |
152.4 |
17.5 |
127.0 |
4-Φ19 |
241 |
|
100 |
4 |
102 |
230 |
190.5 |
22.3 |
157.2 |
8-Φ19 |
292 |
|
125 |
5 |
127 |
255 |
215.9 |
22.3 |
185.7 |
8-Φ22 |
|
|
150 |
6 |
152 |
280 |
241.3 |
23.9 |
215.9 |
8-Φ22 |
|
|
200 |
8 |
203 |
345 |
298.5 |
27.0 |
269.9 |
8-Φ22 |
495 |
尺寸參數 (JIS 10K)單位:毫米
|
DN |
d |
D |
D1 |
f |
C |
R |
Z-d1 |
L |
|
15 |
15 |
95 |
70 |
1 |
12 |
51 |
4-Φ15 |
108 |
|
20 |
20 |
100 |
75 |
1 |
14 |
56 |
4-Φ15 |
117 |
|
25 |
25 |
125 |
90 |
2 |
14 |
67 |
4-Φ19 |
127 |
|
32 |
32 |
135 |
100 |
2 |
16 |
76 |
4-Φ19 |
140 |
|
40 |
40 |
140 |
105 |
2 |
16 |
81 |
4-Φ19 |
165 |
|
50 |
50 |
155 |
120 |
2 |
16 |
96 |
4-Φ19 |
203 |
|
65 |
65 |
175 |
140 |
2 |
18 |
116 |
4-Φ19 |
216 |
|
80 |
80 |
185 |
150 |
2 |
18 |
126 |
8-Φ19 |
241 |
|
100 |
100 |
210 |
175 |
2 |
18 |
151 |
8-Φ19 |
292 |
|
125 |
125 |
250 |
210 |
2 |
20 |
182 |
8-Φ23 |
330 |
|
150 |
150 |
280 |
240 |
2 |
22 |
212 |
8-Φ23 |
356 |
|
200 |
200 |
330 |
290 |
2 |
22 |
262 |
12-Φ23 |
495 |
